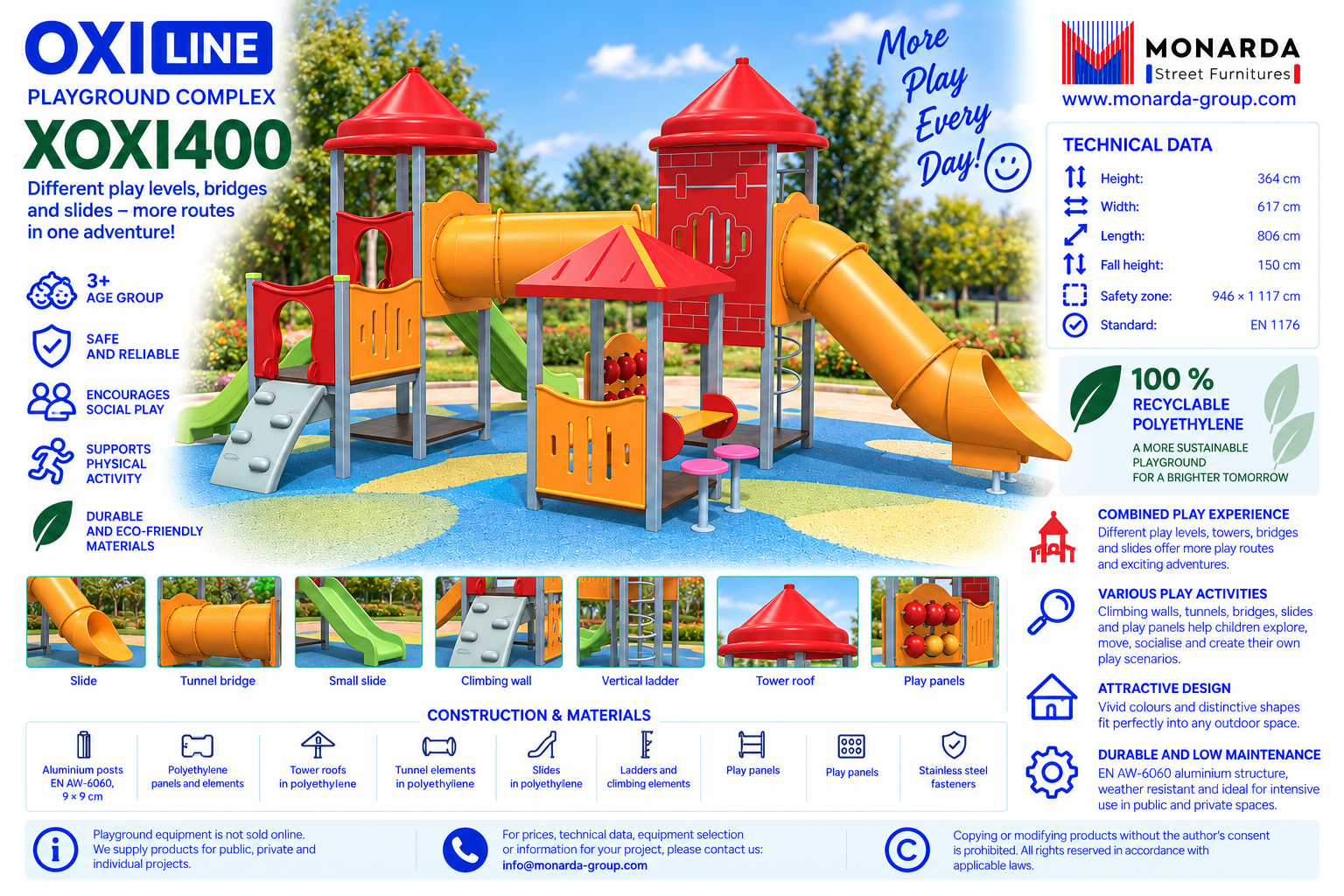

Children’s Playground Complex 'Oxi Line XOXI400'

Children’s Playground Complex “Oxi Line XOXI400”

Different play levels, bridges and slides – more routes within one adventure

Oxi Line XOXI400 is a professional outdoor children’s playground complex where different play levels, slides, bridges and interactive activities come together in one integrated play environment. The structure allows children to choose different routes, move between various parts of the complex and combine active play with calmer activities.

Two play levels – more movement and choice

XOXI400 features ramps at heights of 84 cm and 144 cm, together with open slides at the same heights. The different levels create a more varied play route and give children a choice of different ways to move and descend. The complex also includes a tube slide at a height of 144 cm with a diameter of 80 cm, featuring rotationally moulded polyethylene elements.

Two different tube bridges – a more exciting way to move between play areas

One of the distinctive features of XOXI400 is its two different types of tube bridges. The complex includes a tube bridge at a height of 144 cm with a diameter of 80 cm, as well as a curved tube bridge with rotationally moulded polyethylene elements. These bridges connect different parts of the complex while also becoming an engaging part of the play experience.

Playhouse and interactive activity

The complex includes a playhouse with aluminium supports and a four-pitched roof made of rotationally moulded polyethylene. The play area is complemented by a polyethylene noughts and crosses activity panel with revolving spheres, a polyethylene bench, an HPL shelf and two rubber stools. These elements provide space for calmer play, social interaction and imaginative play scenarios.

EN AW-6060 aluminium construction and 100% recyclable polyethylene

The main structural supports are made of EN AW-6060 aluminium profiles with a cross-section of 9 × 9 cm. The 112 × 112 cm platforms are made of rotationally moulded polyethylene and have an aluminium frame. The construction also includes a stainless steel tubular pole, while the roofs, parapets, ramps, slides and various play elements are made of rotationally moulded polyethylene. The polyethylene used is 100% recyclable.

Playground equipment for architects and designers

XOXI400 is 837 cm long, 506 cm wide and 377 cm high. The fall heights are 84 and 144 cm, while the required safety area is 1037 × 756 cm. These parameters allow architects, landscape architects and designers to accurately position the complex within a site plan and coordinate it with pathways, landscaping, seating areas, street furniture and other children’s playground equipment. The complex can be integrated into projects for parks, schools, kindergartens, residential developments, hotels, resorts and other public or private outdoor spaces.

Complies with EN 1176 requirements

The children’s playground complex complies with EN 1176 requirements applicable to playground equipment. Compliance with this standard is an important technical criterion when designing professional children’s playgrounds for public and private spaces.

Technical data

• Model: XOXI400
• Collection: Oxi Line
• Equipment type: outdoor children’s playground complex
• Height: 377 cm
• Width: 506 cm
• Length: 837 cm
• Fall height: 84 / 144 cm
• Safety area: 1037 × 756 cm
• Standard: EN 1176

Construction and materials

• EN AW-6060 aluminium supports – 9 × 9 cm;
• 112 × 112 cm rotationally moulded polyethylene platforms with aluminium frame;
• rotationally moulded polyethylene ramps – 84 and 144 cm high;
• stainless steel tubular pole;
• rotationally moulded polyethylene roof domes;
• rotationally moulded polyethylene parapets;
• rotationally moulded polyethylene slides – 84 and 144 cm high;
• tube slide at a height of 144 cm, diameter 80 cm, with polyethylene elements;
• tube bridge at a height of 144 cm, diameter 80 cm, with polyethylene elements;
• curved tube bridge with polyethylene elements;
• polyethylene noughts and crosses activity panel with revolving spheres;
• playhouse with aluminium supports and a four-pitched polyethylene roof;
• polyethylene bench;
• one HPL shelf;
• two rubber stools;
• polyethylene – 100% recyclable.

Create a play space children will want to return to

• A successful children’s playground project begins with the right equipment and thoughtful spatial planning. It is important to consider not only the functions and design of the playground equipment, but also the size of the site, safety areas, children’s age groups, circulation routes and the overall architectural and landscape concept.
• Monarda helps architects, landscape architects, designers, property developers, municipalities and other clients select professional children’s playground equipment for public and private projects. We consider the specific parameters of each site, required safety areas, planned play functions and the overall project concept.
• Designing a children’s playground for a park, kindergarten, school, residential development, hotel, resort or other public space? We can help select suitable playground complexes and other outdoor play equipment and provide the technical information required for your project.
• For prices, technical data, equipment selection or information for your project, contact: info@monarda-group.com
• Children’s playground equipment is not sold online – it is supplied for public, private and individual projects.

Note: copying products or modifying their design without the author’s consent is prohibited. Copyright is protected under applicable legislation.
